Chamber Septic System Installation
Professional Chamber Septic System Installation for Residential and Commercial Properties
5 Highlights on Chamber Septic System Installation

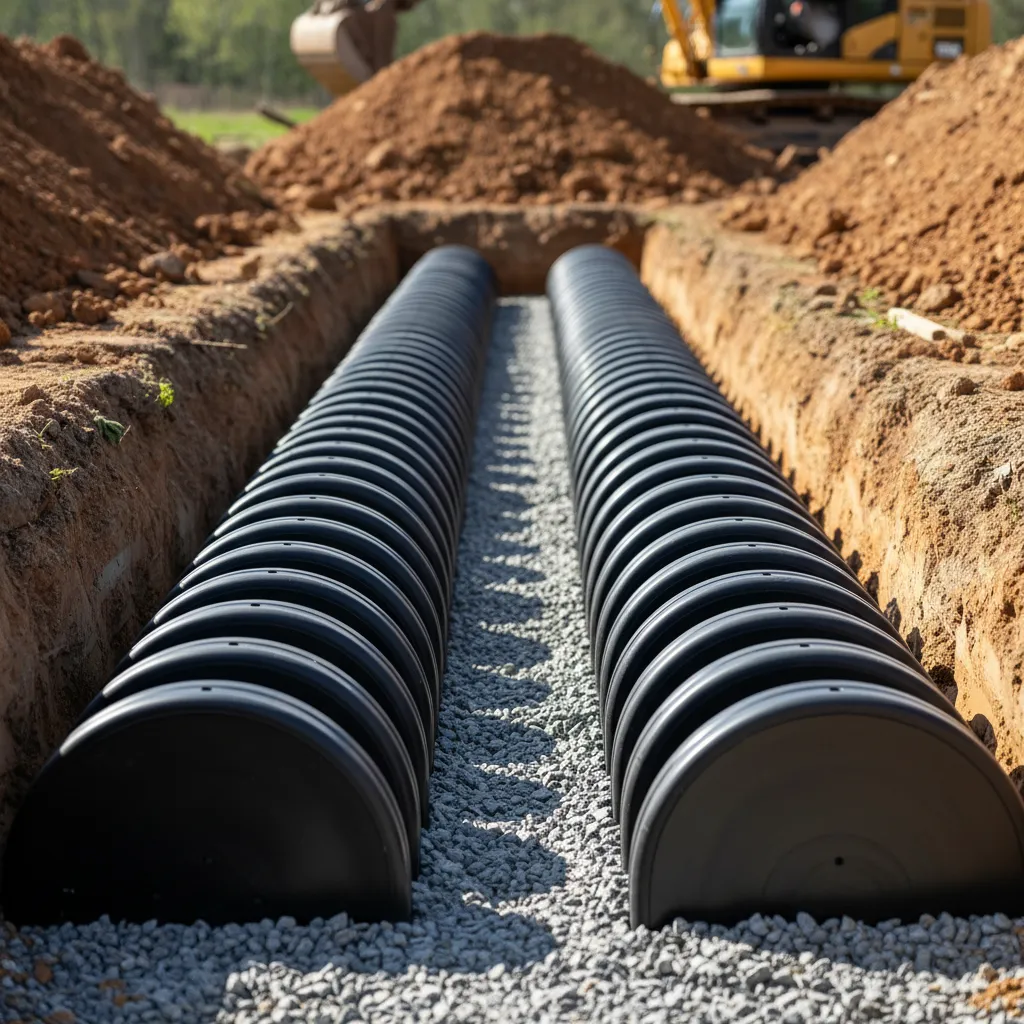

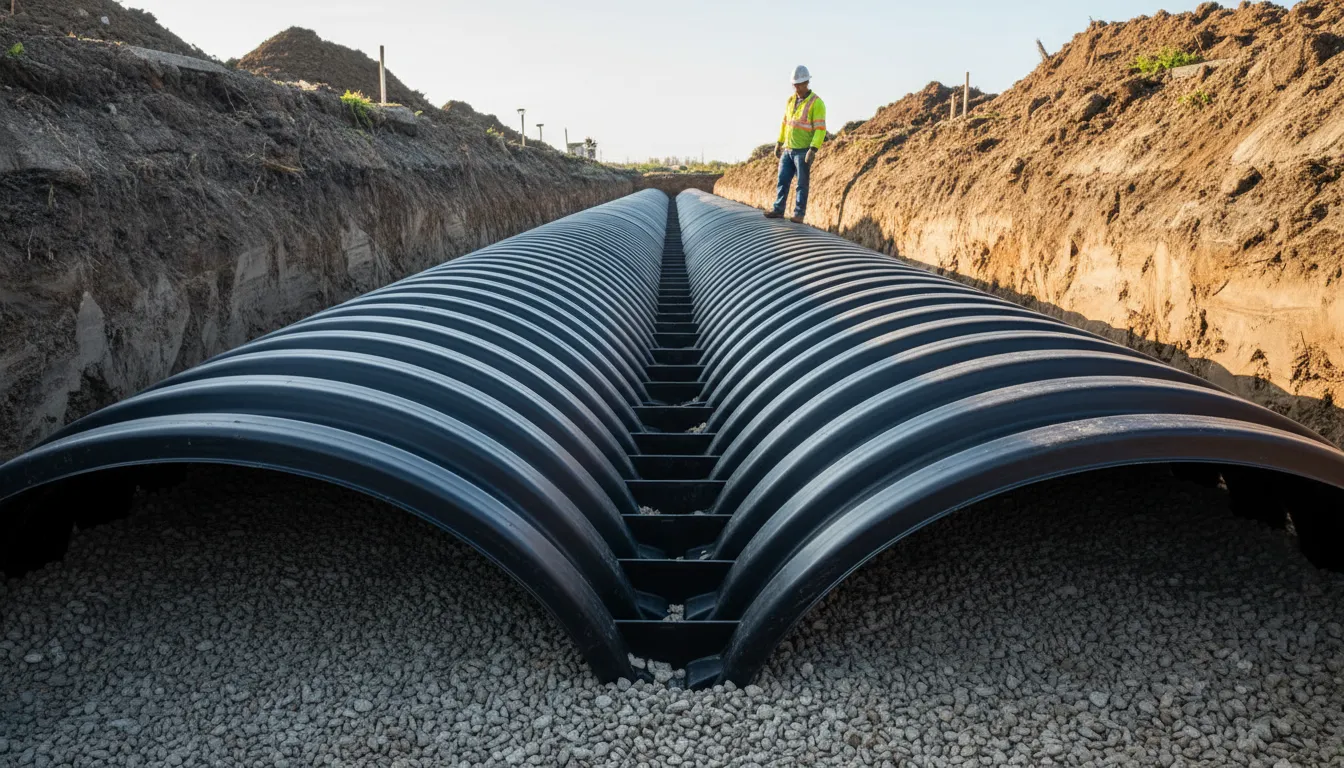

- Gravelless Drain Field Design: Chamber septic system installation replaces conventional gravel bed drain fields with arched, open bottom infiltrator chambers that distribute effluent directly into native soil. This modular design cuts material costs and speeds up excavation timelines.
- Code Compliant Permitting: Every chamber septic system installation we perform starts with a perc test, soil test, and full permit coordination with your local health department. We handle the paperwork so you don’t have to.
- Reduced Aggregate Requirements: Traditional leach field construction demands tons of washed gravel and aggregate. Chamber systems eliminate that need, which means fewer truck loads, less site disturbance, and a smaller footprint on your reserve area.
- High Capacity Effluent Treatment: Our chamber septic system installations accommodate high hydraulic loads for both residential and commercial properties. The corrugated, arched chamber walls increase effluent contact with surrounding soil for better percolation and absorption.
- Long Term Reliability: Molded, high density polyethylene chambers resist crushing, corrosion, and root intrusion. A properly installed chamber septic system delivers decades of subsurface wastewater treatment with minimal maintenance requirements.
Why Choose Our Chamber Septic System Installation
Chamber septic system installation is one of the most requested services we provide at A-1 Bill Gibson Septic Service. We’ve been excavating, plumbing, and commissioning chamber based drain fields for years, and our crews know the difference between a system that just passes inspection and one that performs for the long haul.
We’re a certified septic contractor with hands on experience installing infiltrator chambers, arc chambers, and modular chamber configurations across a wide range of soil types and site conditions. Our team surveys your property, reviews setback requirements and easement boundaries, and designs a chamber layout that meets local code while giving you the best possible effluent distribution.
What sets us apart is precision. We grade every trench to the correct slope, verify invert elevations at each lateral line, and confirm proper connections at the distribution box before any backfill goes in. We don’t cut corners on bedding material, geotextile fabric placement, or compaction.
You get a written scope of work before we break ground. No surprise charges. No guesswork. Our installations come with a workmanship guarantee, and we stand behind every coupler, endcap, and tee fitting we put in the ground. When you need a qualified, trusted team for chamber septic system installation, A-1 Bill Gibson Septic Service is the call to make.
Signs You Need Chamber Septic System Installation
Chamber septic system installation is the right solution when your current wastewater setup can no longer handle the job. Here are five signs it’s time to act.
Your Cesspool or Holding Tank Keeps Failing: Older cesspools and holding tanks weren’t designed for modern hydraulic loads. If your pumper truck visits are getting more frequent and your yard smells like sewage between pumpings, a chamber septic system installation gives you a permanent, code compliant replacement with real effluent treatment capacity.
Saturated or Standing Water Over Your Drain Field: When effluent surfaces above your existing leach field, the biomat layer has likely clogged the soil interface. Saturated conditions mean wastewater isn’t percolating. A new chamber system with properly graded lateral lines and fresh absorption trenches restores subsurface drainage.
Your Perc Test Results Rule Out Conventional Gravel Systems: Some soil types don’t support traditional gravel bed installations. If your percolation rates fall in a range where aggregate based systems won’t work, chamber septic system installation offers an alternative that performs in tighter soils with lower permeability.
You’re Building a New Home or Commercial Structure: New construction requires a permitted septic field. Chamber systems install faster than conventional drain fields, and the modular design adapts to irregular lot shapes, tight setbacks, and high water table conditions that would complicate other approaches.
Your Existing System Predates Current Codes: Older septic installations often lack proper distribution boxes, inspection ports, or adequate reserve areas. If your county requires a system upgrade during a property transfer or renovation, a chamber septic system installation brings everything up to current standards in one project.
Our Chamber Septic System Installation Process
Chamber septic system installation follows a structured sequence from initial survey to final commissioning. Here’s how we do it at A-1 Bill Gibson Septic Service.
Step 1: Site Evaluation and Soil Testing We survey your property, identify setback distances from wells and structures, and perform a perc test. Soil test results determine chamber sizing, trench depth, and lateral line spacing.
Step 2: Permit Application We prepare and submit all permit documents to your local health authority. This includes site plans, soil data, system specifications, and reserve area designations.
Step 3: Excavation and Grading Our crew excavates absorption trenches to the engineered depth and grades each trench to maintain proper slope. We verify invert elevations and prepare the bedding material surface.
Step 4: Chamber Placement and Connection We set each arched, open bottom chamber into the trench, connect them end to end with couplers and endcaps, and tie lateral lines into the header pipe and distribution box. Every connection gets inspected before we move on.
Step 5: Septic Tank and Piping We install or connect the septic tank, inlet pipe, outlet pipe, baffles, tee fittings, risers, and lids. The pump chamber, dosing pump, float switch, and alarm go in if the design requires a pressurized system.
Step 6: Backfill and Final Inspection We place geotextile fabric over the chambers, backfill with approved material, and compact in lifts. A final inspection confirms the entire chamber septic system installation meets code before we commission the system.
Brands We Use
Chamber septic system installation demands materials that hold up underground for decades. We install products from these trusted manufacturers:
- Infiltrator Water Technologies
- Polylok
- TUF-TITE
- Orenco Systems
- SJE Rhombus
- Zoeller
- Liberty Pumps
- Advanced Drainage Systems (ADS)
- Charlotte Pipe
- Sim/Tech Filter
Every product we install meets ASTM standards and local code requirements.
Other Services
| Chamber septic system installation | Infiltrator chamber installation | Gravelless drain field install |
| Septic chamber system install | Chambered leach field installation | Subsurface wastewater chamber system |
| Install chamber septic system | Modular septic chamber setup | Open bottom chamber drain field |
| Chamber drain field installation | Arc chamber septic install | Residential chamber septic design |
| Chamber septic system contractor | Professional chamber system installation | Septic chamber absorption trench |
FAQs About Chamber Septic System Installation
What is a chamber septic system?
A chamber septic system uses arched, open bottom plastic chambers buried in absorption trenches instead of traditional gravel beds. Effluent flows from the septic tank through a distribution box into the chambers, where it percolates directly into the surrounding soil. The chambers create air space that promotes aerobic decomposition and better effluent treatment.
How long does chamber septic system installation take?
Most residential chamber septic system installations take two to five days from excavation to backfill. Permitting and soil testing add time on the front end, but the actual fieldwork moves faster than conventional gravel systems because there’s no aggregate to haul and place.
Why choose chambers over a gravel drain field?
Chambers weigh less, install faster, and don’t require tons of washed stone. They also provide greater storage volume during peak hydraulic loads and perform well in soils with moderate percolation rates. Many homeowners and septic contractors prefer chamber systems for their lower installed cost and reduced site disruption.
How much does chamber septic system installation cost?
Costs vary based on system size, soil conditions, site access, and local permit fees. A qualified septic contractor like A-1 Bill Gibson Septic Service provides a detailed written estimate after completing the site evaluation and perc test.
Can a chamber system replace my old septic field?
Yes. Chamber septic system installation is one of the most common ways to retrofit or replace a failing conventional drain field, cesspool, or undersized leach field. We decommission the old system and install a new chamber layout that meets current codes.
Does a chamber septic system need maintenance?
Regular septic tank pumping, effluent filter cleaning, and periodic inspection keep a chamber system running properly. The chambers themselves require no servicing, but the tank, distribution box, and pump components need routine attention from a professional septic service.
